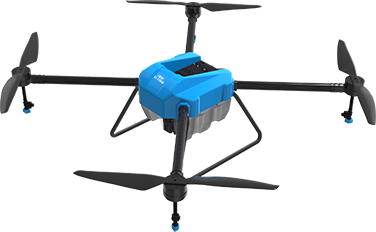

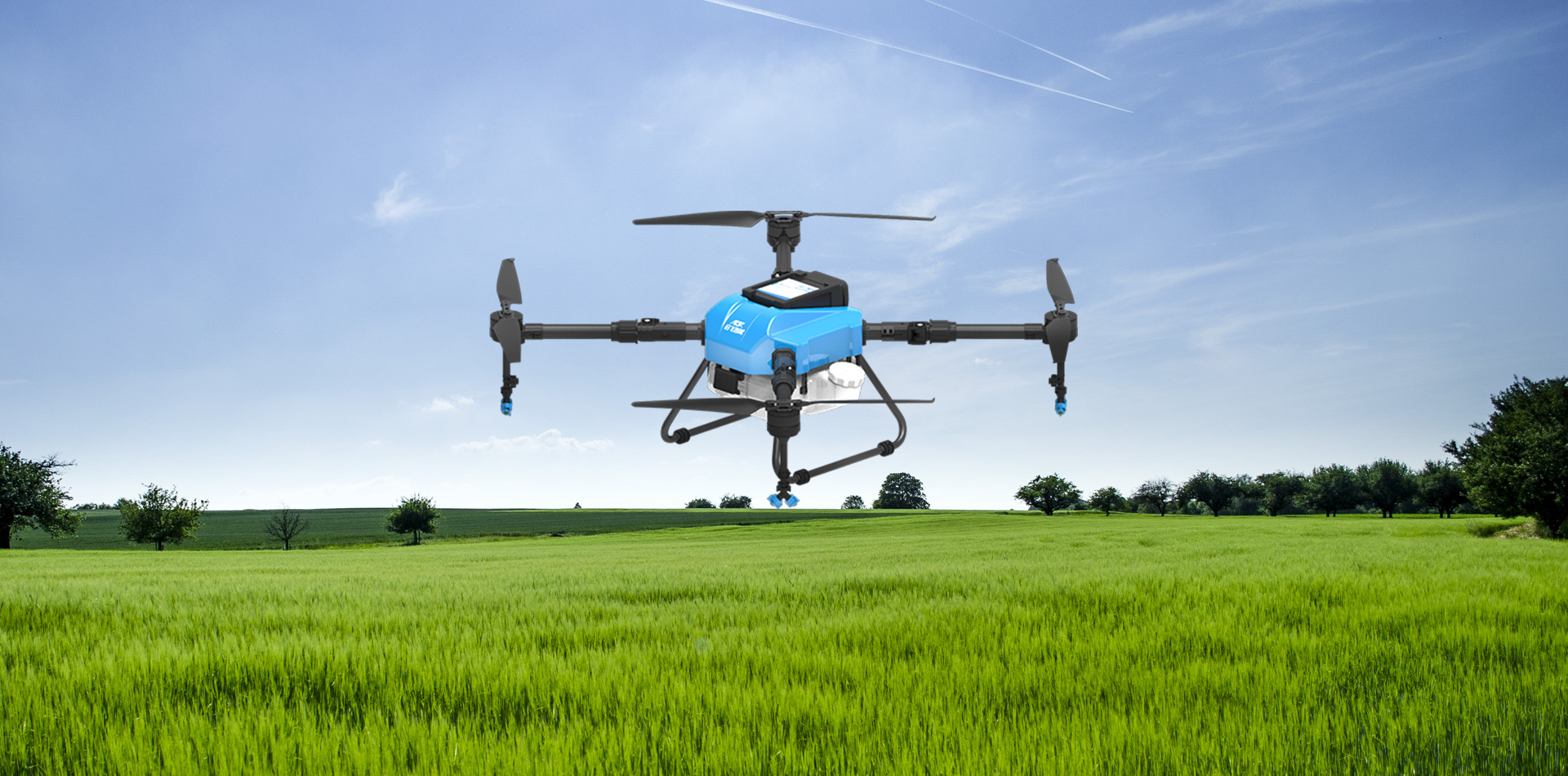

Q10 2020 Agriculture Drone
![](/skin/images/new-product-q10.jpg)
Modular Integration
Brushless Integrated Water Pump
Folding Body
Support Obstacle Avoidance
Expandable Dusting, Spraying and Misting
Full Functioning
QUITE COST-EFFECTIVE CREATE GREATER PROFITS
![](/skin/images/f3d5b9251671d1ebccaa.png)
![](/skin/images/bg8.png)
![](/skin/images/97209cc279ca0705c0da.png)

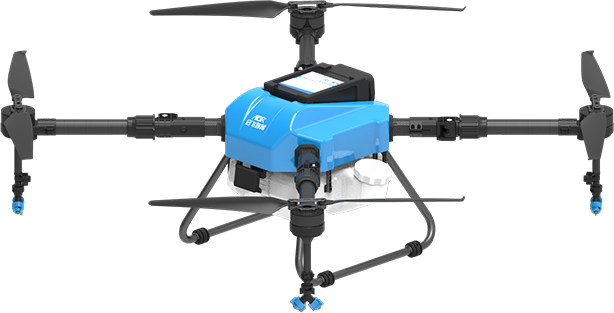

The new generation Q10 2020 is based on a stable and durable basis, which meets more agricultural application scenarios, and reflects more practical updates in structure, performance and expansion. On the premise of ensuring stable structure, the modular integration of the whole machine is higher, the types of parts are fewer, and maintenance is very convenient. The arm folding function greatly reduces the portability of transportation and field handling. Playing in the AG3 flight control system, it supports more abundant functions that are easy to operate and improves work efficiency. It also supports the expansion of sowing, fertilizing, dusting, and misting functions, which is convenient and practical for installation.
STRUCTURAL INNOVATION SOLID AND RELIABLE

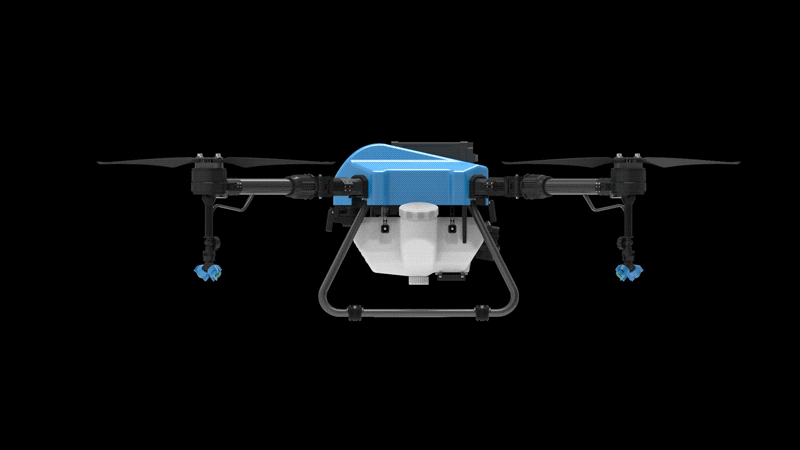

FOLDING ARM
Reduced Shipping and Storage Volume, Quick Installation, Quick Replacement
![](/skin/images/arm-structure-q10.gif)

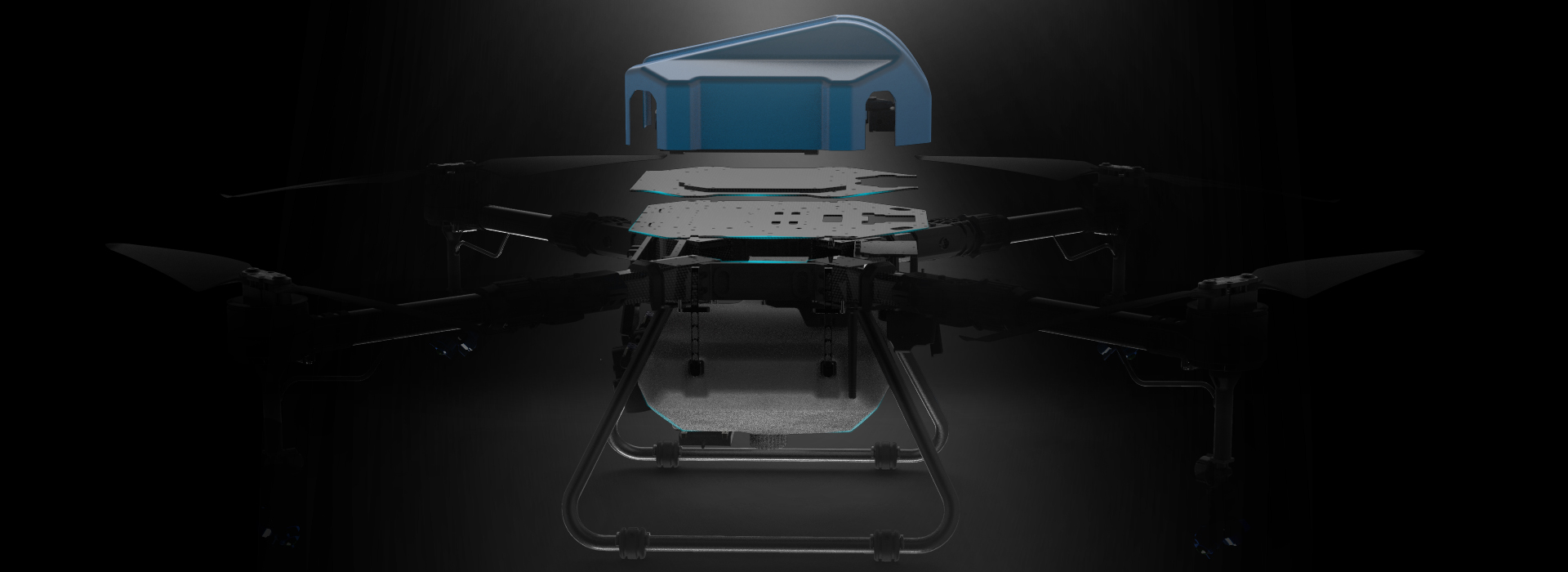

MODULAR DESIGN
![](/skin/images/180d5b4e3e750f1d7051.jpg)
PRECISE SPRAYING EFFICIENT OPERATION
![](/skin/images/water-pump-q10.gif)

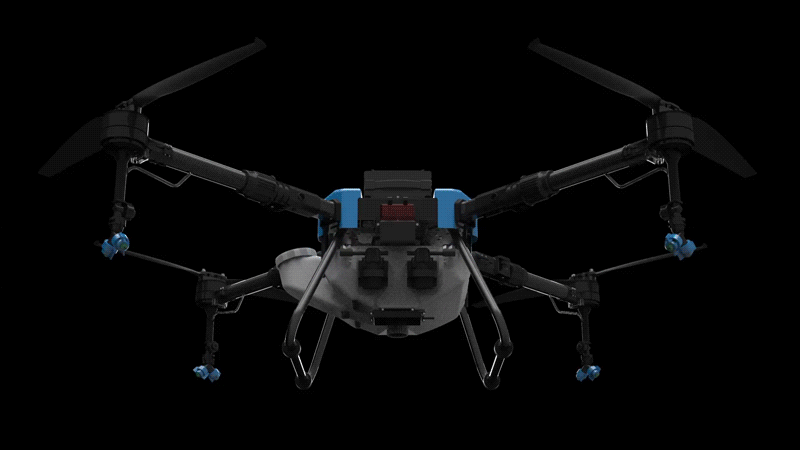

EQUIPPED WITH TWO INTEGRATED BRUSHLESS WATER PUMPS
Support Front and Rear Separated Spraying,Share a Variety of Print Heads to Achieve a Variety of Operating Scene Switching
OPERATING EFFICIENCY UP TO42 ACRES/DAYy
CALIBRATION-FREE DESIGN

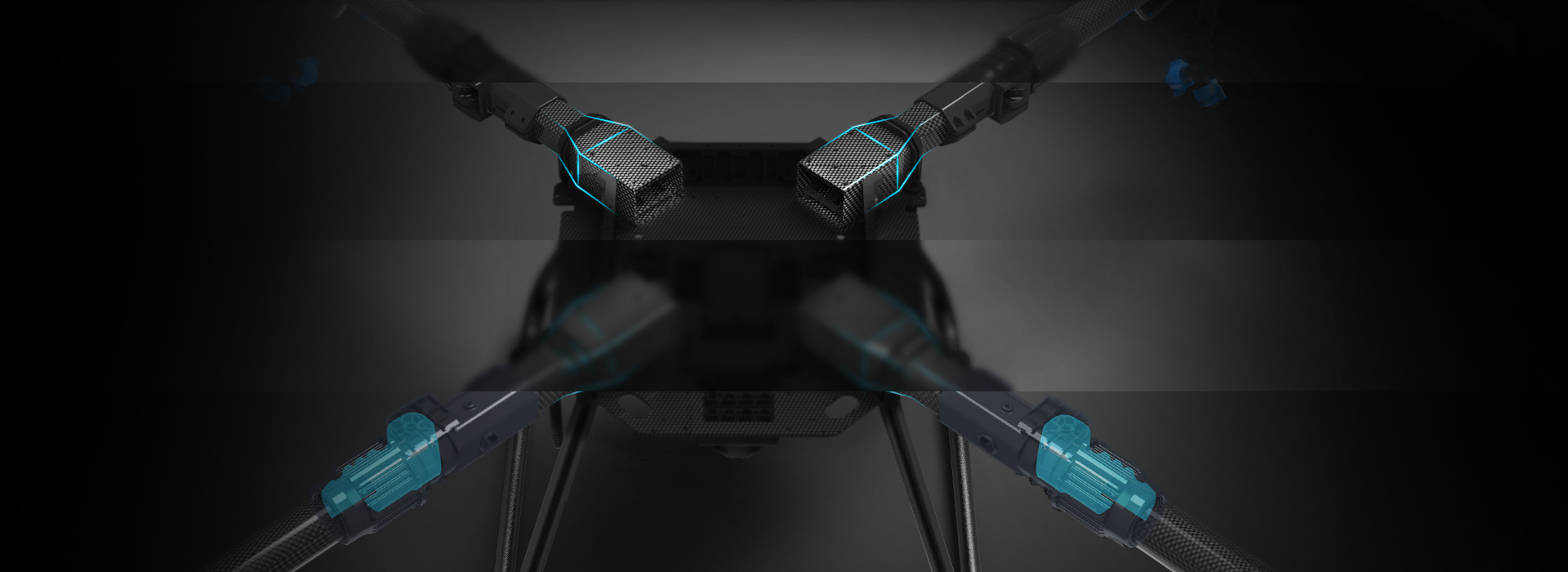

FOLDING ARM, ELIMINATE THE VIRTUAL POSITION
![](/skin/images/5a7d355b749b2cfe1a44.jpg)
FLEXIBLE AND PRACTICAL Q10, CALMLY FACE A VARIETY OF OPERATION NEEDS
Flexiblely meet the needs of various operations such as dusting, spreading, and misting, and expand more agricultural production scenarios
- Dusting Operation
- Spreading Operation
- Misting Operation
AGR INTELLIGENT APP
Monitor Flight Status in Real Time
Flexible Retrieval of Operation Data
Remotely Detect Flight Failures
Intelligent Route Planning Tasks
Support Multiple Operation Modes
Show Battery Status in Real Time
![](/skin/images/16d9a223ad1ab7317d2a.jpg)
AGRICULTURAL PLANT PROTECTION PLATFORM
Visual Supervision Platform, Supervising Flight Data is more Convenient
Real-time Monitoring of Flight Status, Aircraft Model / Flying Altitude /Speed / Trajectory
Comprehensive Operation Management System for Easy Management of Plant Protection Operation Progress
Efficiently Assign Work Tasks, View Plot Area and Flight Defense Distribution
Flexible Retrieval of Job Data for Analysis of Plant Protection Drone Status Information
Support Viewing Electronic Fences, No- Fly Zones, etc.
![](/skin/images/e1b86f32255720335d9a.png)
![](/skin/images/964d681d44c2021fae03.jpg)
DRONE PARAMETERS
-
Drone Dimension:
1140mm×1140mm×480mm -
Remote Control Distance:
2000m -
Package Dimension:
905mm×775mm×585mm -
Maximum Attitude:
30m -
Aircraft Weight:
11.3KG -
Battery Weight:
4.4KG -
Full Loading Weight:
25.7KG -
Battery Size:
90mm×160mm×220mm -
Hourly Work Area:
2.66-6.66 Hectare -
Charging Time:
15-40mins -
Operation Area per Tank:
0.66 Hectare (15L/Hectare) -
Charger Size:
310mm×202mm×113mm -
Droplet Size:
80-240μm -
Charging Power:
2100W Flow Rate:
1L/min-5L/min-
Single Motor Power:
900W Spray Width:
3-6m-
Total Power:
3600W
