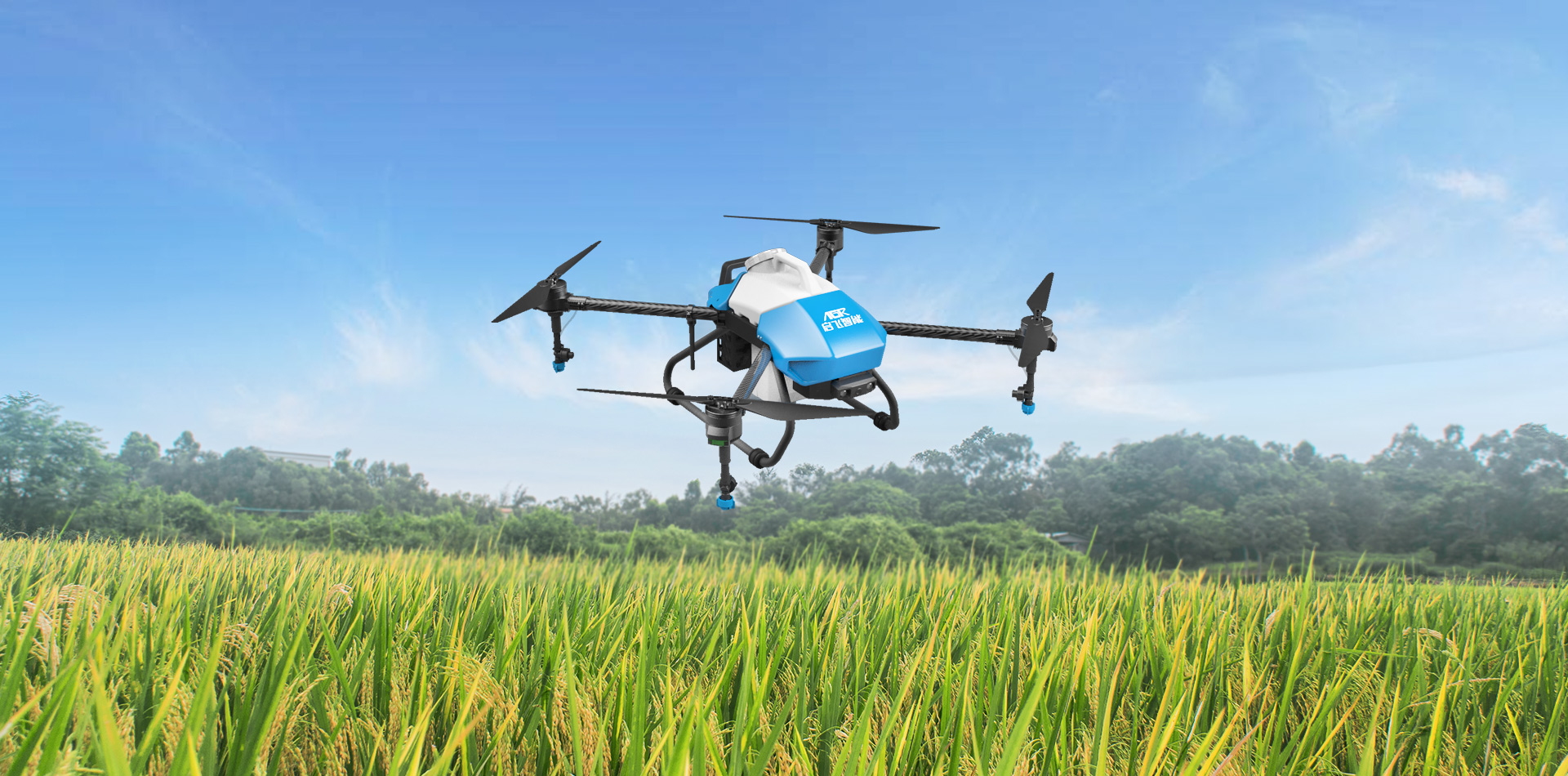

A6 2020 Agriculture Drone
"Tiny Body Emits Huge Energy"
-
AB Point Flight
-
Fully Autonomous Mode
-
Support FPV
-

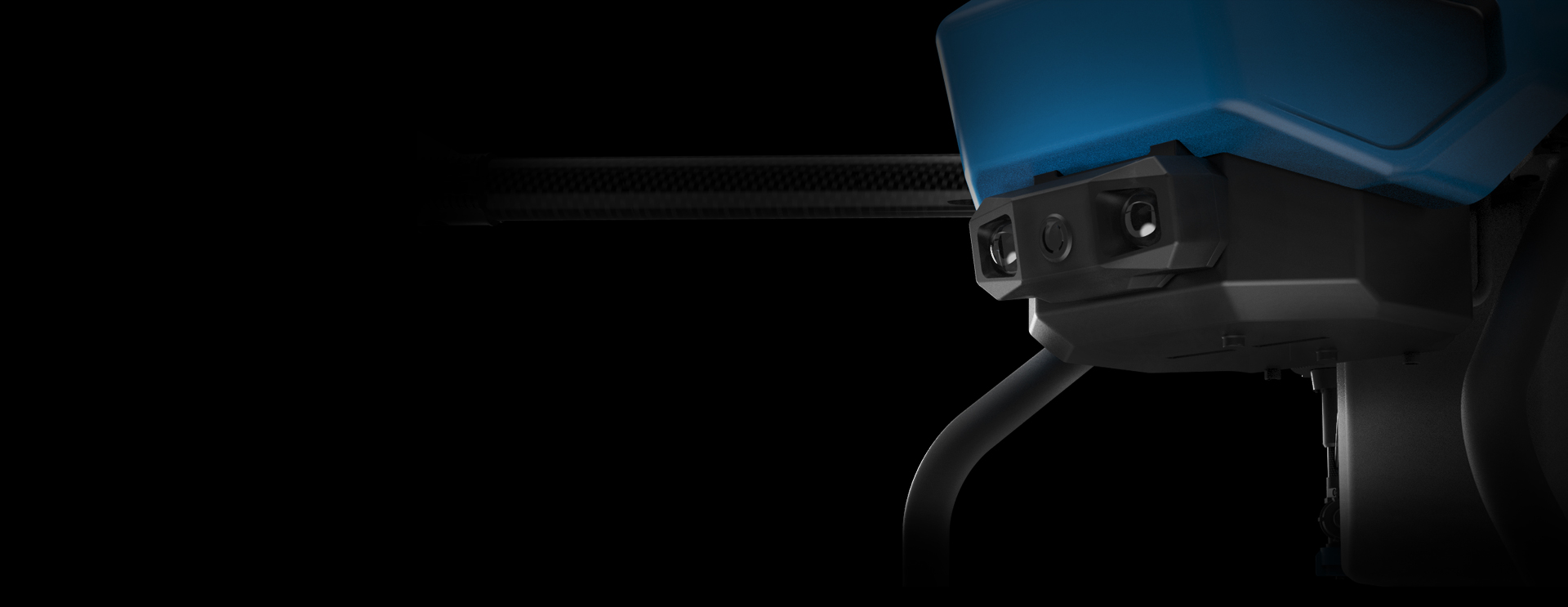

Intelligent Obstacle Avoidance
-
Continue Spray on Break Point
-

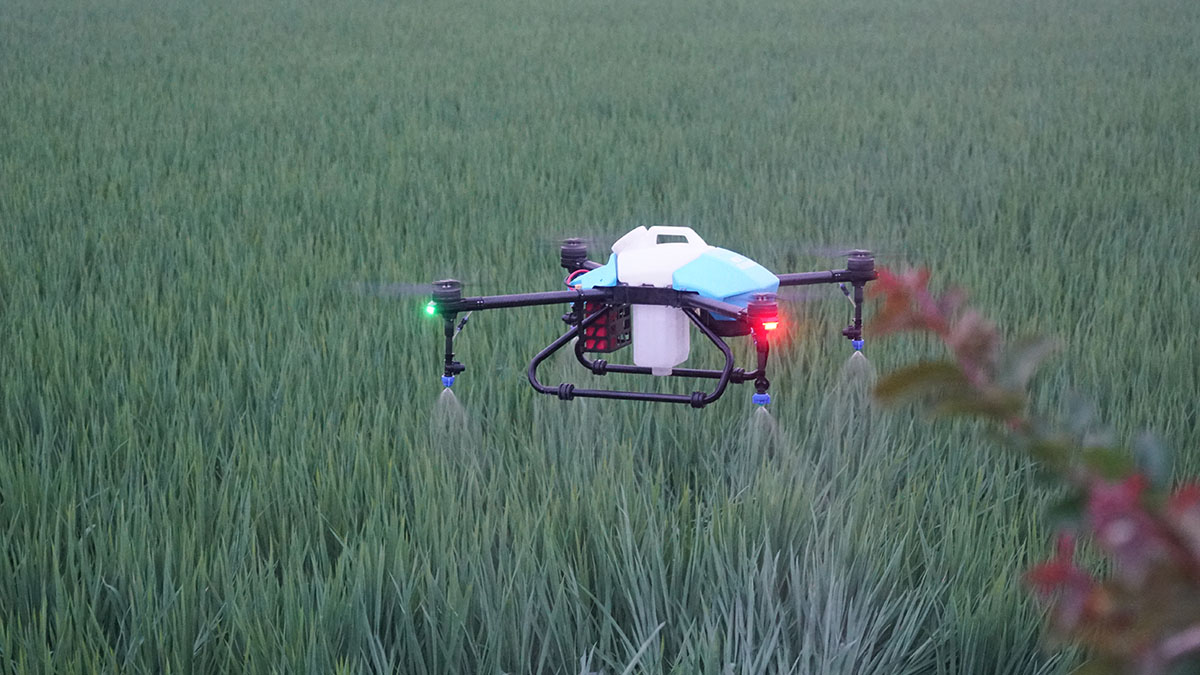

Strong Wind Field
MULTIPLE OPERATION MODES
FPV first view flight. Complete functions, support manual mode, fully autonomous mode, AB point mode operation, etc.

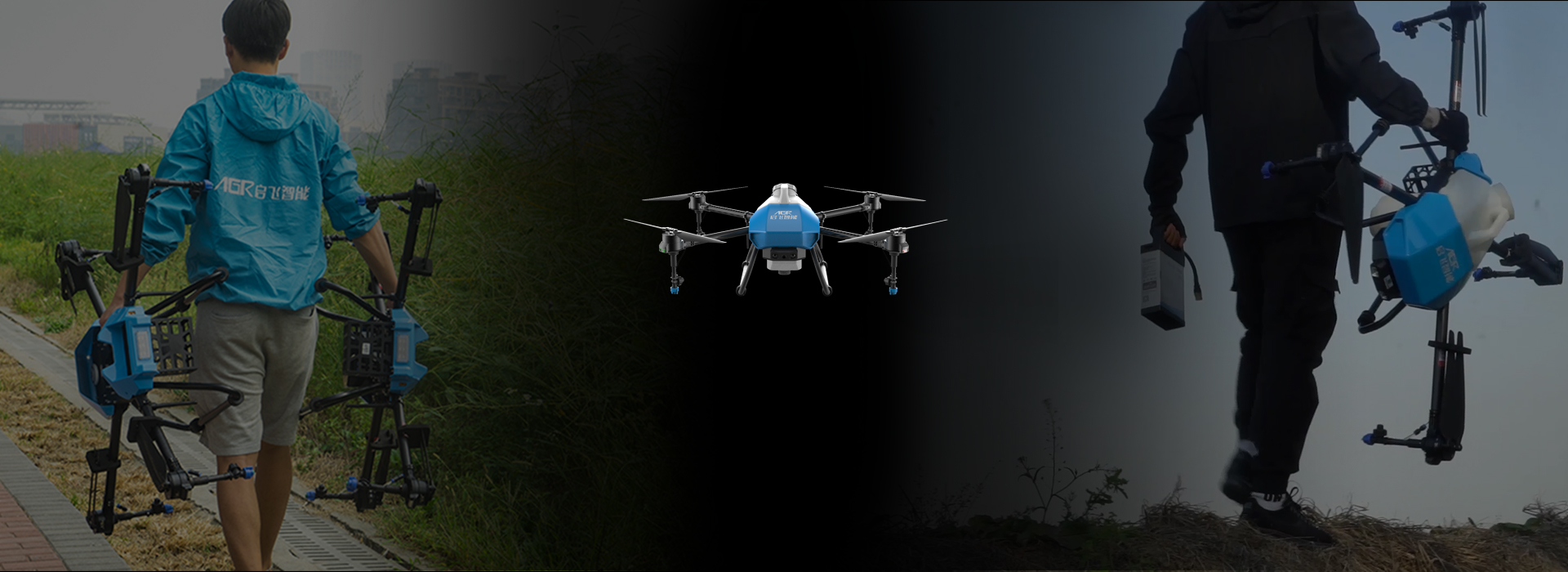

COMPACT BODY, EASY TO CARRY
Flexible operation, suitable for more small plot operation options

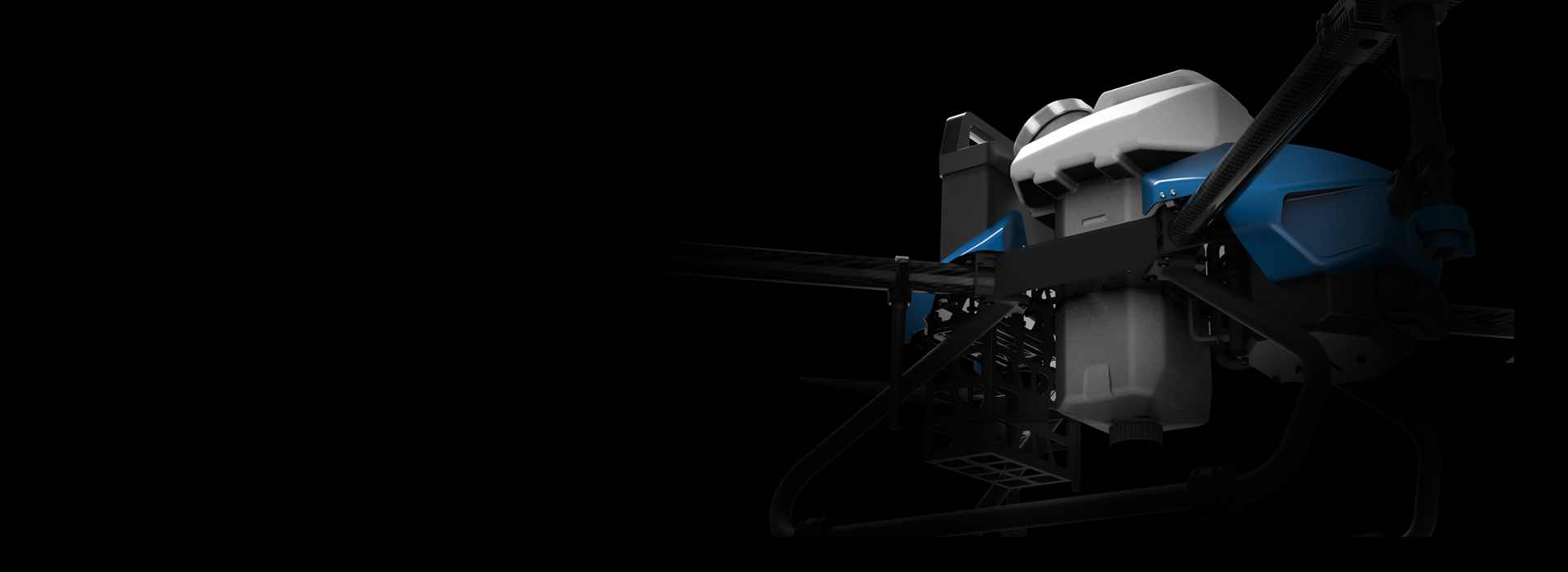

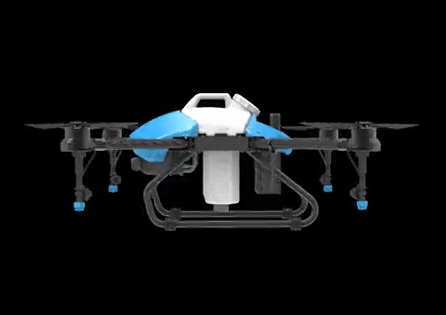

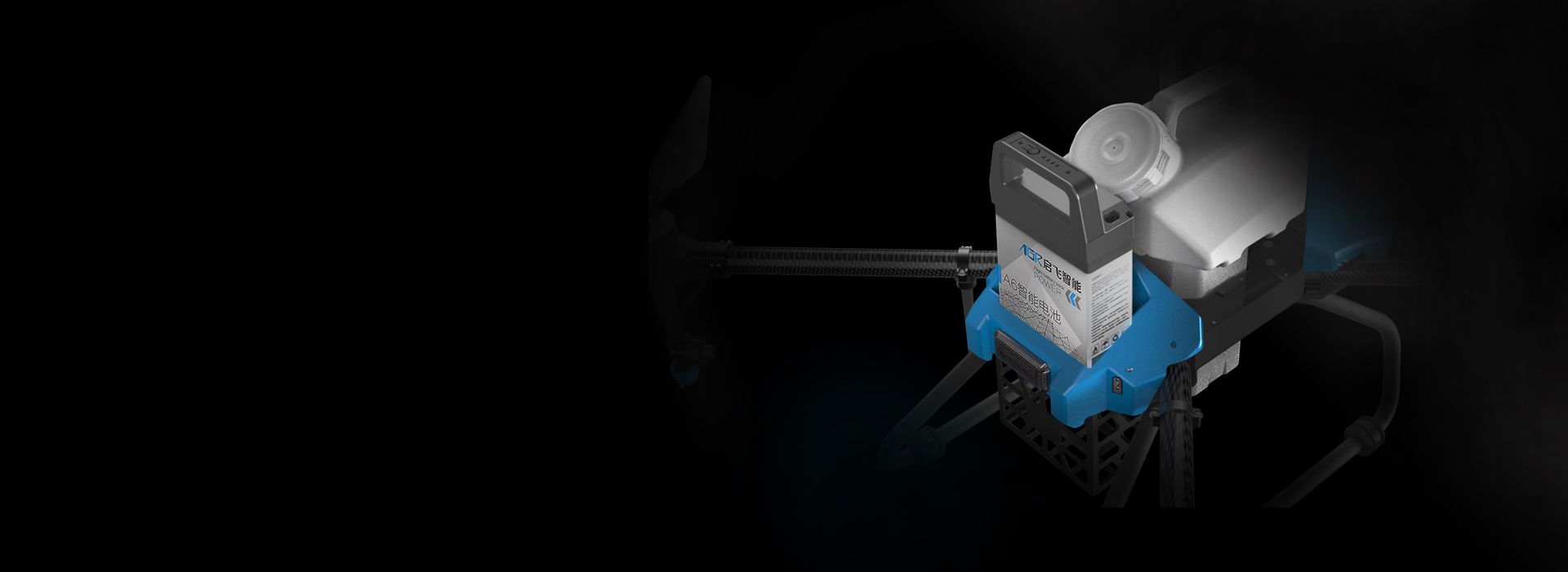

SIMPLE STRUCTURE AND LIGHTER DRONE
Modular design of the whole drone , easy for maintenance Pluggable tank and battery , easy to change
HIGH BATTERY UTILIZATION
Low battery cost and low battery consumption. One battery support for spraying two tanks

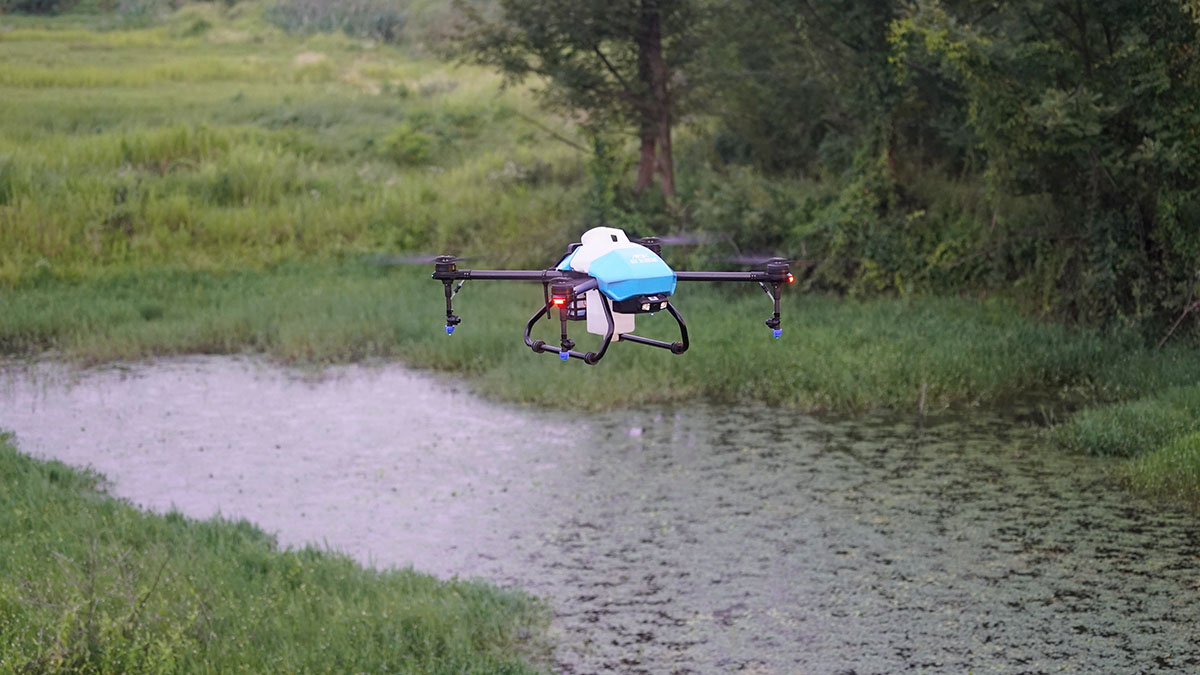

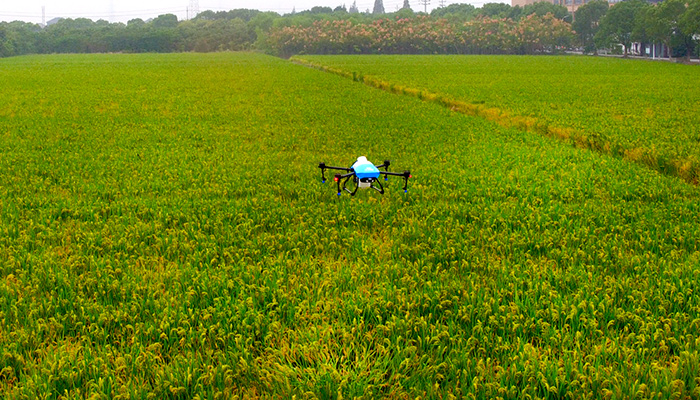

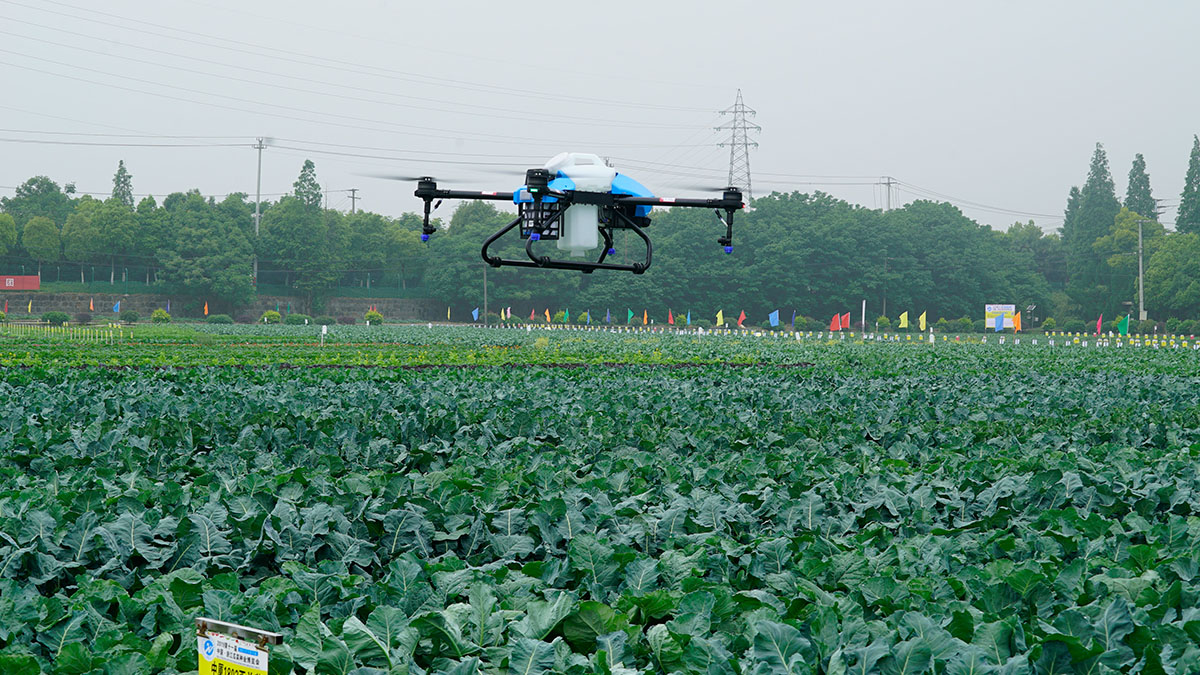

APPLICATION SCENARIO

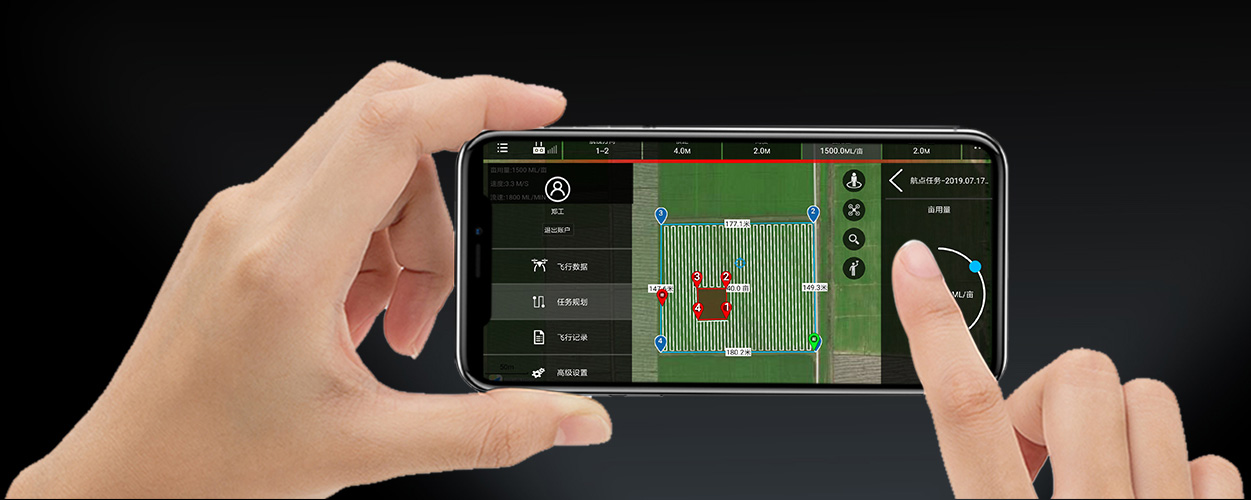

AGR INTELLIGENT APP
Monitor Flight Status in Real Time- Flexible Retrieval of Operation Data
Remotely Detect Flight Failures
Intelligent Route Planning Tasks
Support Multiple Operation Modes
Show Battery Status in Real Time

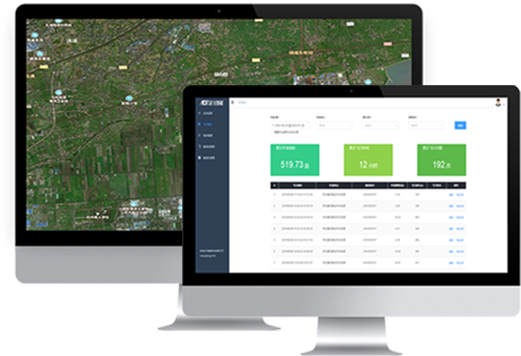

AGRICULTURAL PLANT PROTECTION PLATFORM
Visual Supervision Platform, Supervising Flight Data is more Convenient
Real-time Monitoring of Flight Status, Aircraft Model / Flying Altitude /Speed / Trajectory
Comprehensive Operation Management System for Easy Management of Plant Protection Operation Progress
Efficiently Assign Work Tasks, View Plot Area and Flight Defense Distribution
Flexible Retrieval of Job Data for Analysis of Plant Protection Drone Status Information
Support Viewing Electronic Fences, No- Fly Zones, etc.
Drone Parameters
-
Drone Dimension:
855mm×855mm×406mm -
Remote Control Distance:
2000m -
Package Dimension:
970mm×970mm×300mm -
Maximum Attitude:
30m -
Aircraft Weight:
7.1KG -
Battery Weight:
2.5KG -
Full Loading Weight:
15.6KG -
Battery Size:
245mm×65mm×140mm -
Hourly Work Area:
1.33-4 Hectare -
Charging Time:
15-40mins -
Operation Area per Tank:
0.4Hectare (15L/Hectare) -
Charger Size:
272mm×202mm×118.6mm -
Droplet Size:
80-130μm -
Charging Power:
1200W -
Flow Rate:
1L/min-1.8L/min -
Single Motor Power:
600W -
Spray Width:
2-3.5m -
Total Power:
2400W
